View a Scout Map

Note: Inspection GPS info is only available in the Scout map when tracking in Chateau Mobile was enabled.

For any day inspections are performed, you can view a map of the GPS information associated with the path the technician took and the actual inspections performed.

To view a Scout map:

1. Open the Scout tab.

2. Select a start date.

3. Select an end date.

4. If you want to select a specific date, make the start and end dates the same.

5. Click Search.

6. When the grid appears, scroll right to view the number of inspections for each technician.

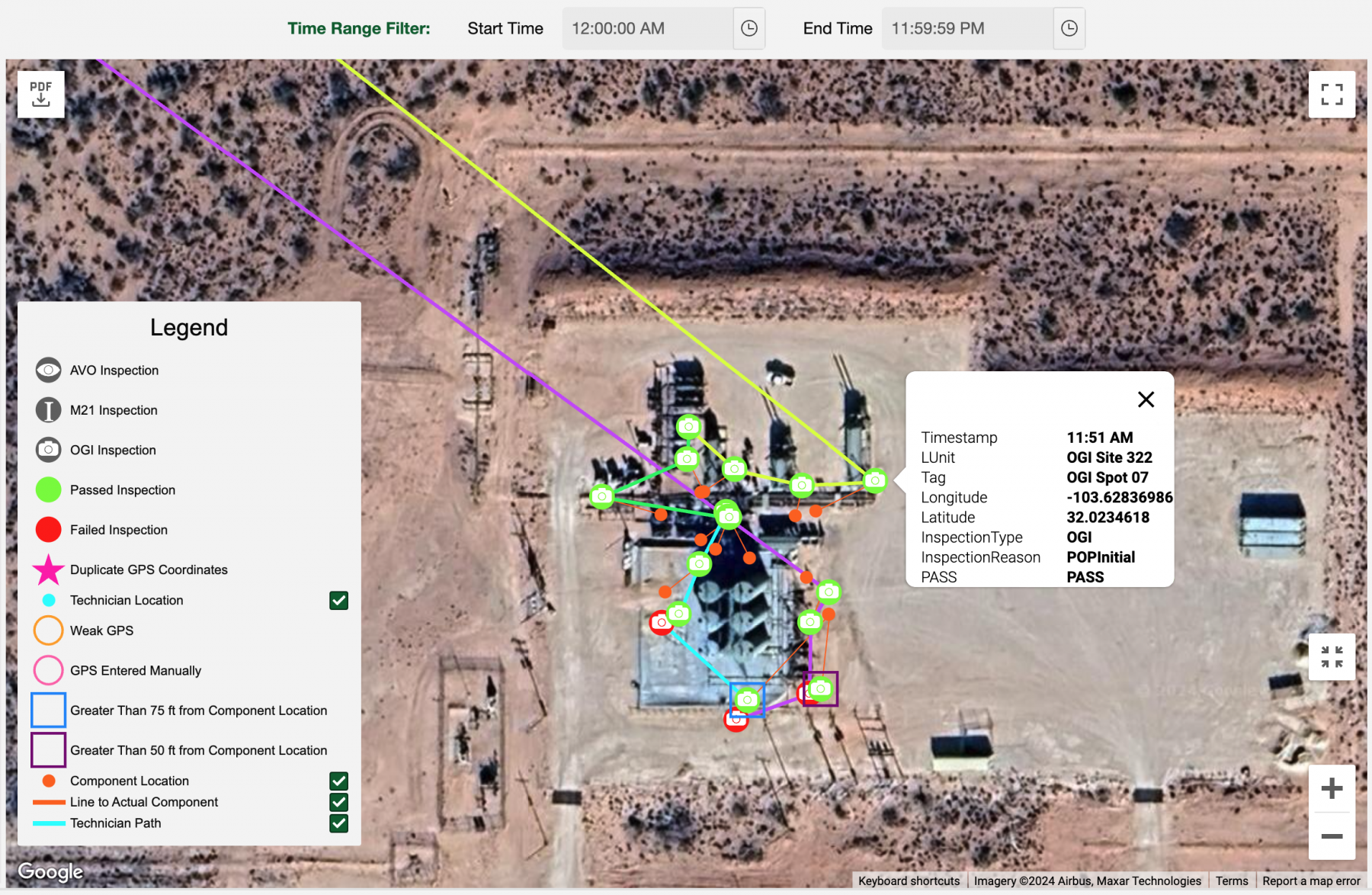

7. Select a technician and the map will appear.

8. The map is interactive, allowing you to use your cursor for selecting any of the inspection icons to reveal all of the data associated with that inspection.

9. You may specify the start time and the end time in the Time Range Filter to show the inspections happened in that time time range only.

Icon	Item	Description
	AVO Inspection
	M21 Inspection
	OGI Inspection	Inspection performed by an infrared camera.
	Passed Inspection	No leak.
	Failed Inspection	Indicates a leak.
	Duplicate GPS Coordinates	Same GPS on multiple inspections.
	Technician Location	Shows a dot for each two minute interval where no inspections were performed.
	Weak GPS
	GPS Entered Manually
	Greater Than 75 ft. from Component Location	The GPS coordinate for the inspection is calculated to be more than 75 ft. from the known GPS coordinate for the component.
	Greater Than 50 ft. from Component Location	The GPS coordinate for the inspection is calculated to be more than 75 ft. from the known GPS coordinate for the component.
	Component Location	GPS coordinate for the component the recorded inspection was performed on.
	Line to Actual Component	Line from the inspection to the GPS for the component.
	Technician Path	Path the Technician Traveled between Inspections.

You will notice you can use the check boxes to hide or reveal the following four data sets:

• Tracking Data
• Technician Actual Track
• Component Location
• Line to Actual Component

You also have the following controls on the map’s image:

Icon	Function
	Expand the image to full screen.
	Center the image on the screen.
	Rotate map to the right (clockwise).
	Rotate map to the left (counterclockwise).
	Change the angle of you view.
	Make the map larger or smaller.
	Export the Scout Map to a PDF with a signature box.

Sometimes the icons will appear alone, as shown in the legend, while other times you will see hybrid versions of more than one icon combined, as shown below.

	Failed OGI Inspection, Weak GPS
	Failed M21 Inspection
	Passed AVO Inspection, Greater than 50 Feet from the Component
	Passed M21 Inspection, Greater than 75 Feet from the Component
